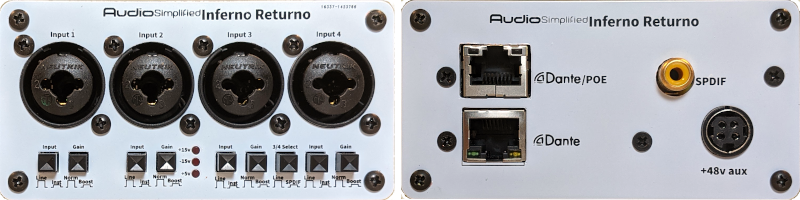

Inferno Returno

Compact Four Input Dante Interface

Downloads:

Inferno Returno Specifications


Inferno Returno solves many challenges encountered in the studio or on stage: multiple stereo output keyboard rigs, stereo guitars with fx and direct sends, legacy analog mic preamps, wireless mic receivers, electronic drums…

Price: $430
Availability: 4 weeks
Pay via PayPal
Options

Overview

  • Four independent channels. Each channel contains:
    • Balanced line input with two gain settings (+4dBu or -10dBv) on XLR or ¼”TRS.
      • Switch selectable to...
    • High headroom Instrument DI with two gain settings for passive & active pickups on ¼” TS.
  • Inputs 3-4 can be switched to accept an S/PDIF input.
  • Power is supplied via POE (power over ethernet) or available external power brick.
  • Two Inferno Returnos can be chained together, allowing eight inputs on a single ethernet cable. Interconnection is accomplished by short ethernet cable and power jumper.

Specifications

Line Inputs (balanced or unbalanced):
Input connector: XLR or ¼” TRS
Impedance: 48kΩ differential
Nominal/Maximum Level norm: +4dBu / +24dBu
Nominal/Maximum Level boost: -10dBv / +12dBu

Direct Instrument Inputs(DI) (unbalanced):
Input connector: ¼” TS
Impedance: 4.7megohm
Nominal/Maximum Level norm: -26dBu / -6dBu
Nominal/Maximum Level boost: -6dBu / +14dBu

Frequency Response:
20hZ to 20kHz +0.01dB,-0.11dB

Noise level:
-96 dBa

Distortion:
THD: .026%
IMD: .032%

Power:
POE: 4500mw,class 0 – one unit powered
POE: 9800mw,class 0 – two units powered
External: 48v,300ma, 1500v ISO certified
Aux Power Output: 48v, 150ma max for loop to second Inferno Returno. Optional cable required.

Dimensions:
width: 101.5mm , height: 50.9mm, depth: 156mm
width: 4", height: 2", depth: 6.14"
